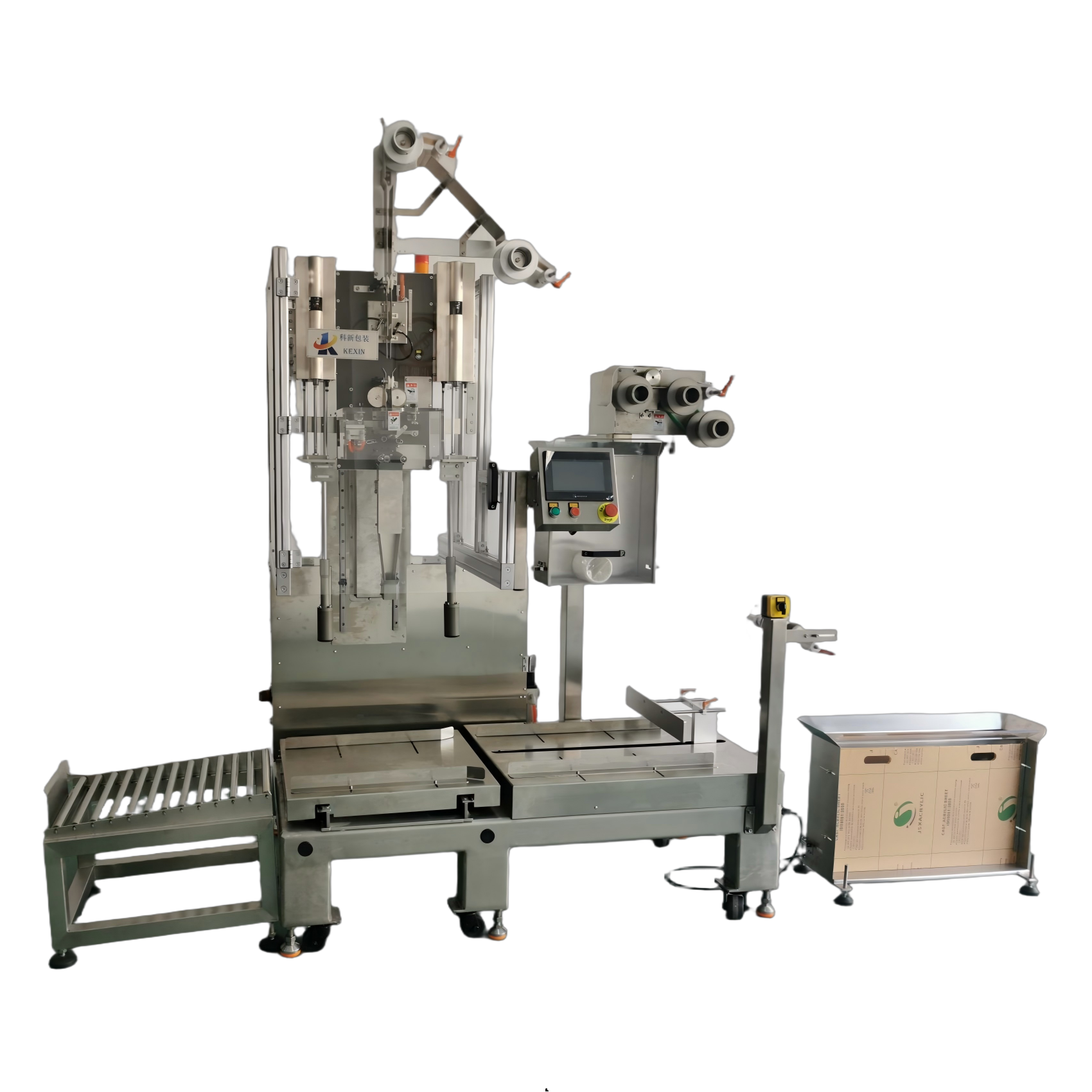

DDBX500P is an intelligent high-speed Pouch Loader Sachet Layer machine. It synchronizes with the automatic pouch packaging machine automatically. The machine head can be raised and lowered. The pressure feeding devices at both ends can stack the bags more neatly. When the count reaches full, it automatically cuts off, automatically pushes out the full basket, and automatically inserts an empty basket. It is extremely intelligent and fully automatic.
Application
Automatically arraying, laying and checking the power bags, oil bags, vegetable bags(Need add accelerate servo system) etc. from output of hi-speed sachet packaging machine.
Features
1. Efficiency: Automatically arraying, laying and feeding the sachets with high speed up to 500pcs/min.
2. Stack Neatly: The machine head can be raised and lowered, and there are press pack device on both sides to ensure that the stack is neat
3. Auto Cutting and box change: Machine can automatically cut the sachet by setting aim quantity and change standby box automatically when current box is full.
4. Health: Machine laying to avoid touch food by hand, complied with hygiene requirements.
Specification
1. Max Capacity: 500 pcs/min
2. Power: 220~240V AC 50HZ 2KW
3. Overall Dimension:
4. (3100)*(1200-1350)*(H2100-2520)mm
5. Weight: 530KG
6. Pressure:0.6Mpa，Air consumption：60L/min
Size for Pouch
Length: 30-100mm
Width: 30-90mm
Thickness: 2-15mm
Size for Box
Length: 380-580mm
Width: 200-400mm
Height: 100-400mm
Main Material: SUS304
